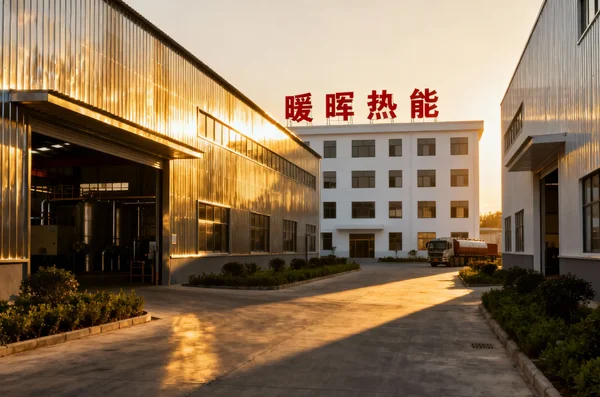

SUN AURA THERMAL is a professional Chinese manufacturer with over 17 years of experience in floor heating and heating products.
Safe, Economical & Eco-Friendly Heating Solutions for Every Home
Graphene Heat · Future of Living Warmth
ABOUT HEATING FILM.
The main applications of heating films are:
Underfloor heating
Ceiling heating

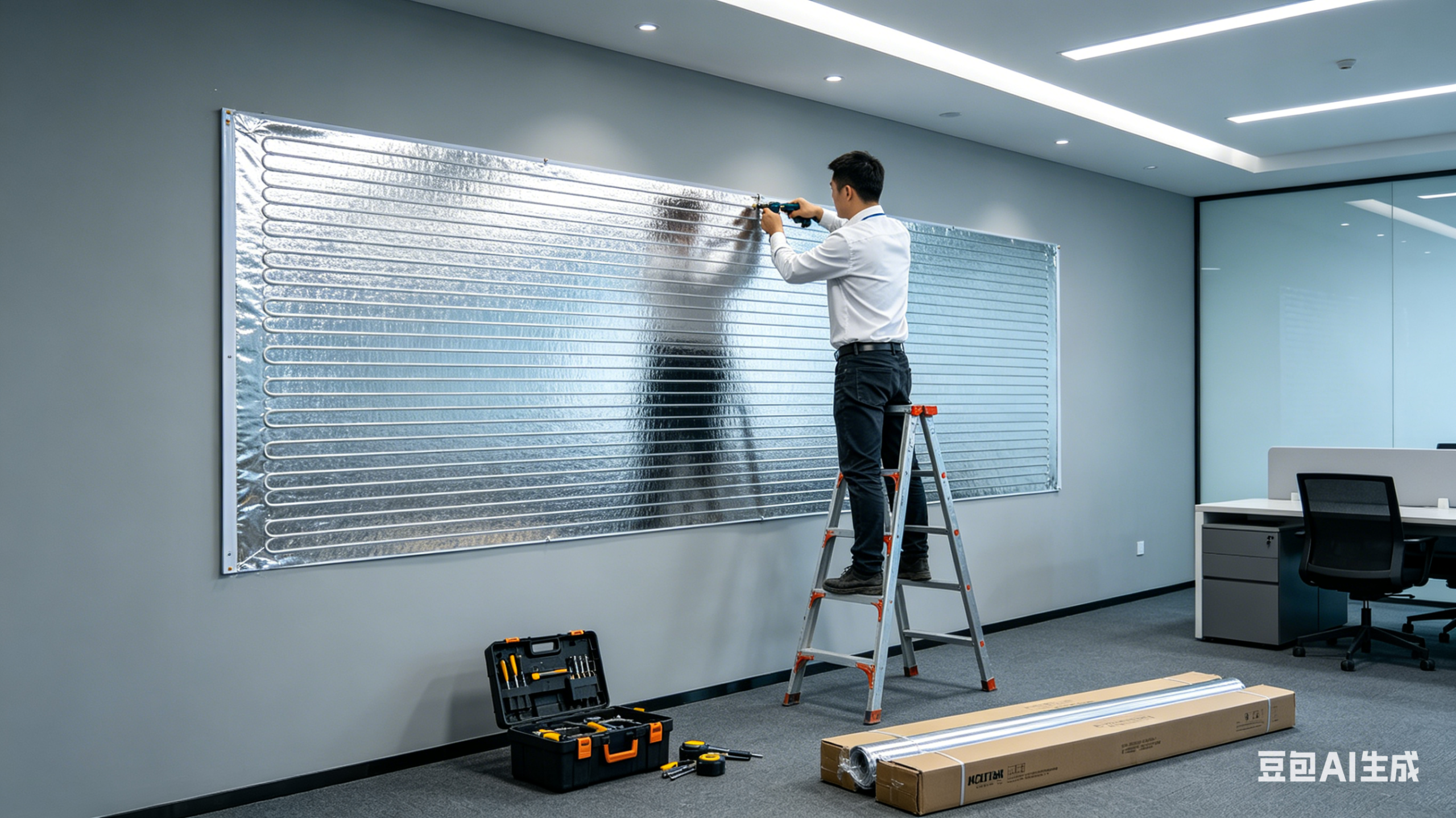

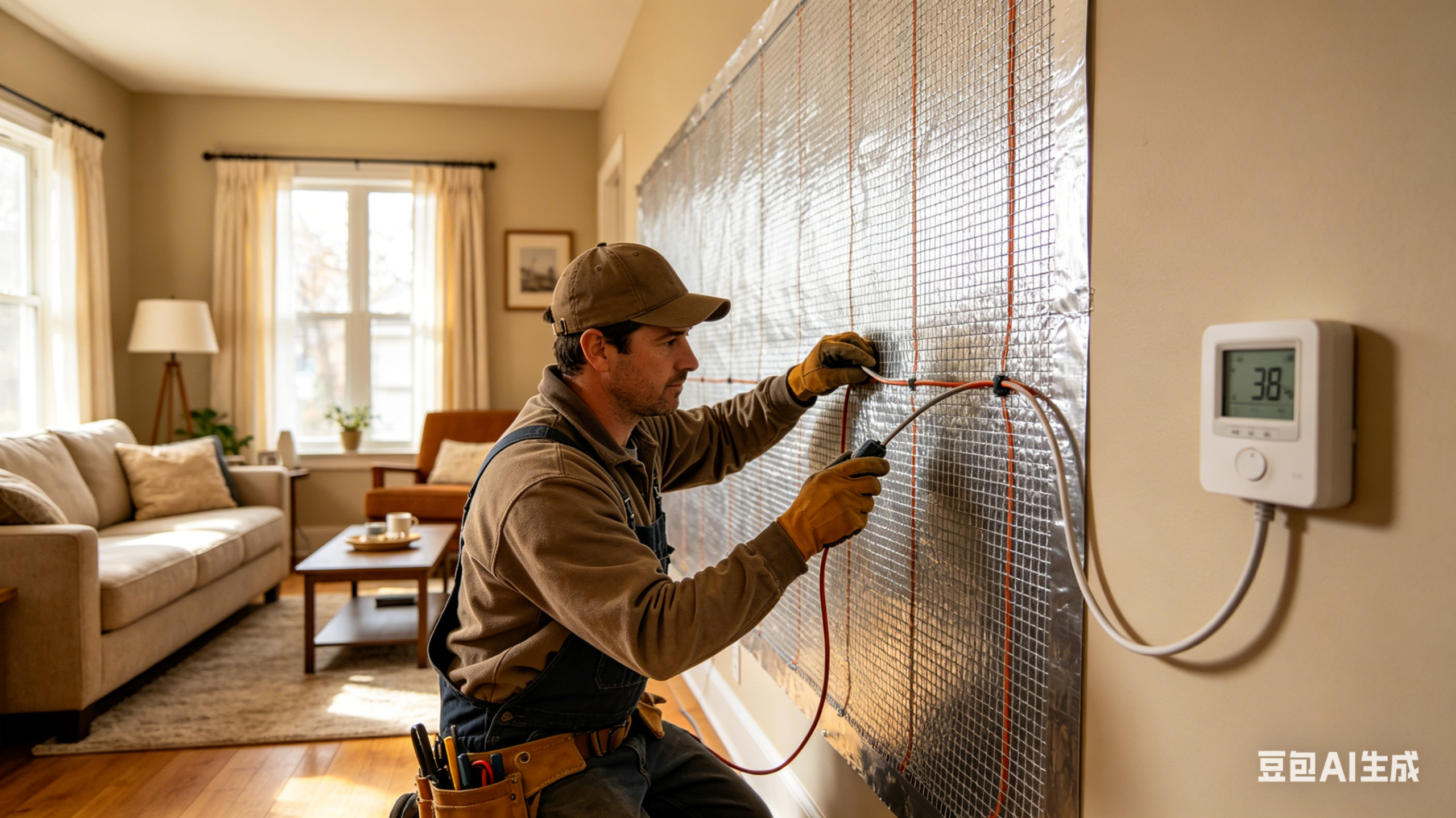

Wall heating

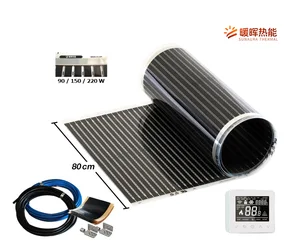

Our heating film is a slim, flexible far-infrared heating component available in multiple power ratings and sizes. Its heating core uses a specially formulated graphene‑carbon composite, where heating performance is determined by the material ratio and coating density.

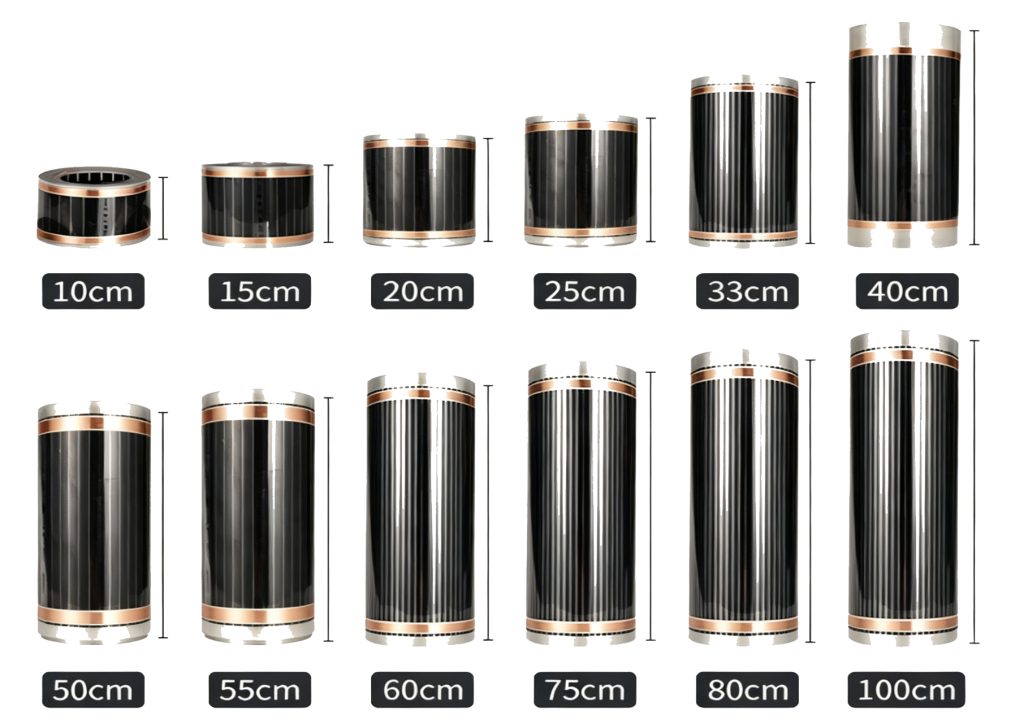

Heating Film Size Overview
Heating Film Size Overview
Available in a full range of standard widths to fit any project requirement: 10cm, 15cm, 20cm, 25cm, 33cm, 40cm, 50cm, 55cm, 60cm, 75cm, 80cm, and 100cm, with customizable lengths to suit residential, commercial, and industrial heating applications.
TECHNOLOGY
- Our heating film operates based on the resistive properties of carbon. Each infrared heating film is constructed from high-grade carbon and silver‑aluminum composite pastes, precisely printed onto durable PET film using advanced screen-printing technology.

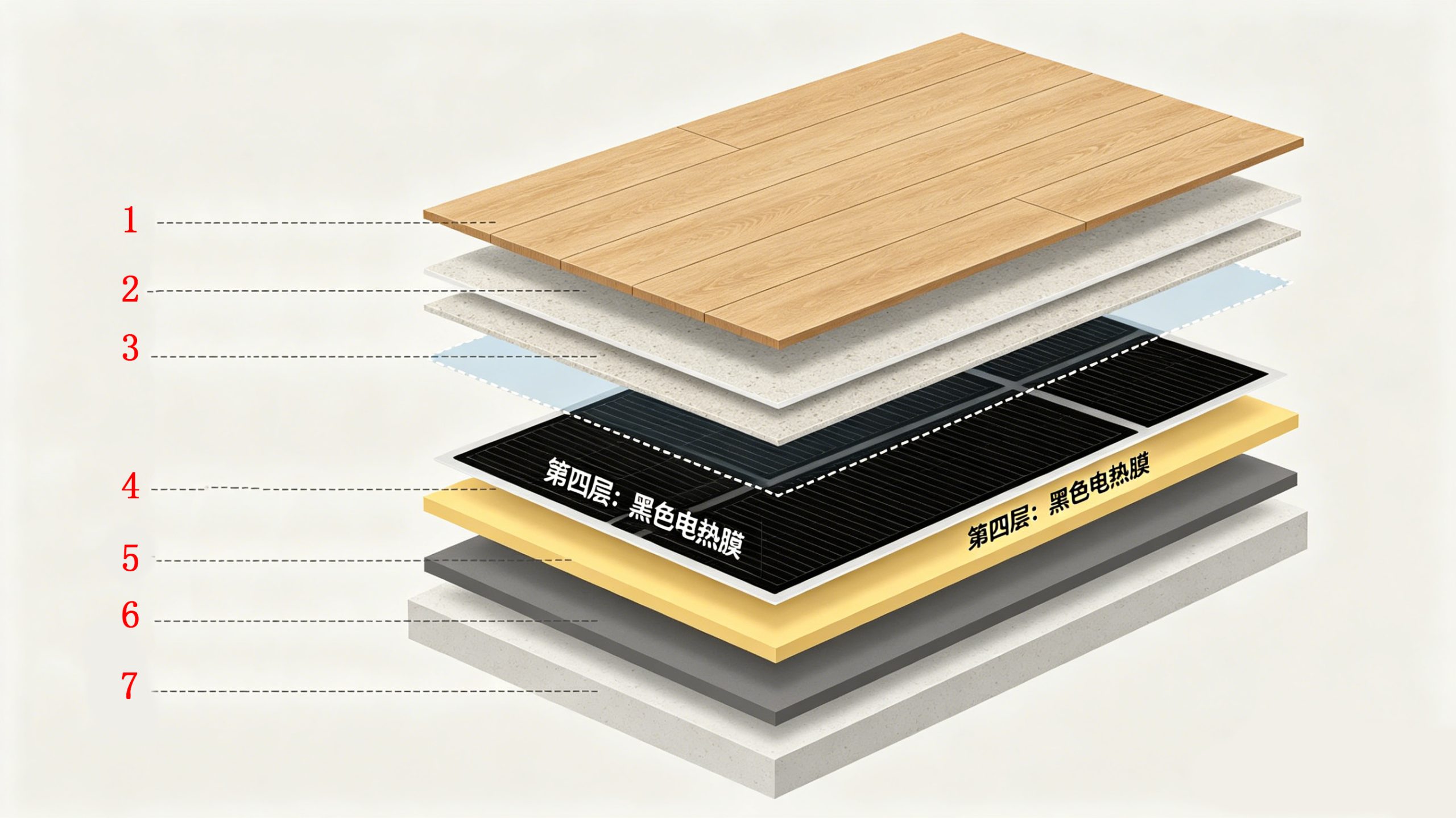

Cross-section of a floor with heating film installed
- 1.LAMINATE FLOOR1.
- 2.VAPOUR MEMBRANE2.
- 3.COOPER BUSBAR3.
- 4.HEATING FILM4.
- 5.INSULATION5.
- 6.BASE FLOOR6.
- 7.THERMOSTAT7.
- 8.TEMPERATURE SENSOR8.

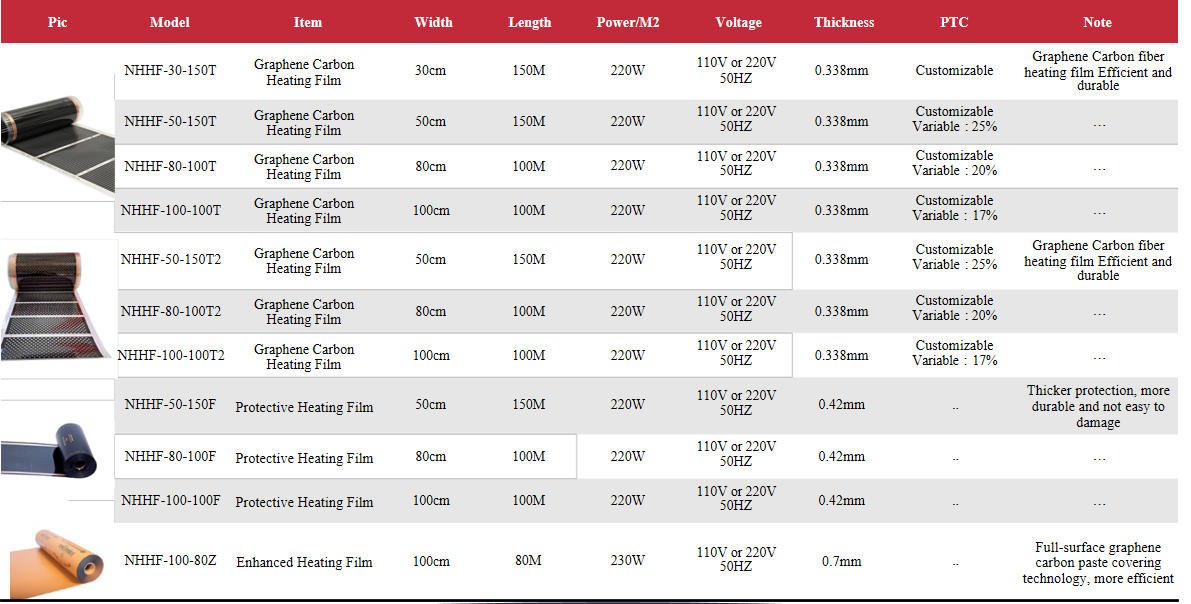

PARAMETERS
Graphene Heat · Future of Living Warmth
USAGE
The SunAura thermal heating system is widely applied in houses, apartments, hotels, guesthouses, restaurants, offices, fitness centers, kindergartens, hospitals and breeding farms.

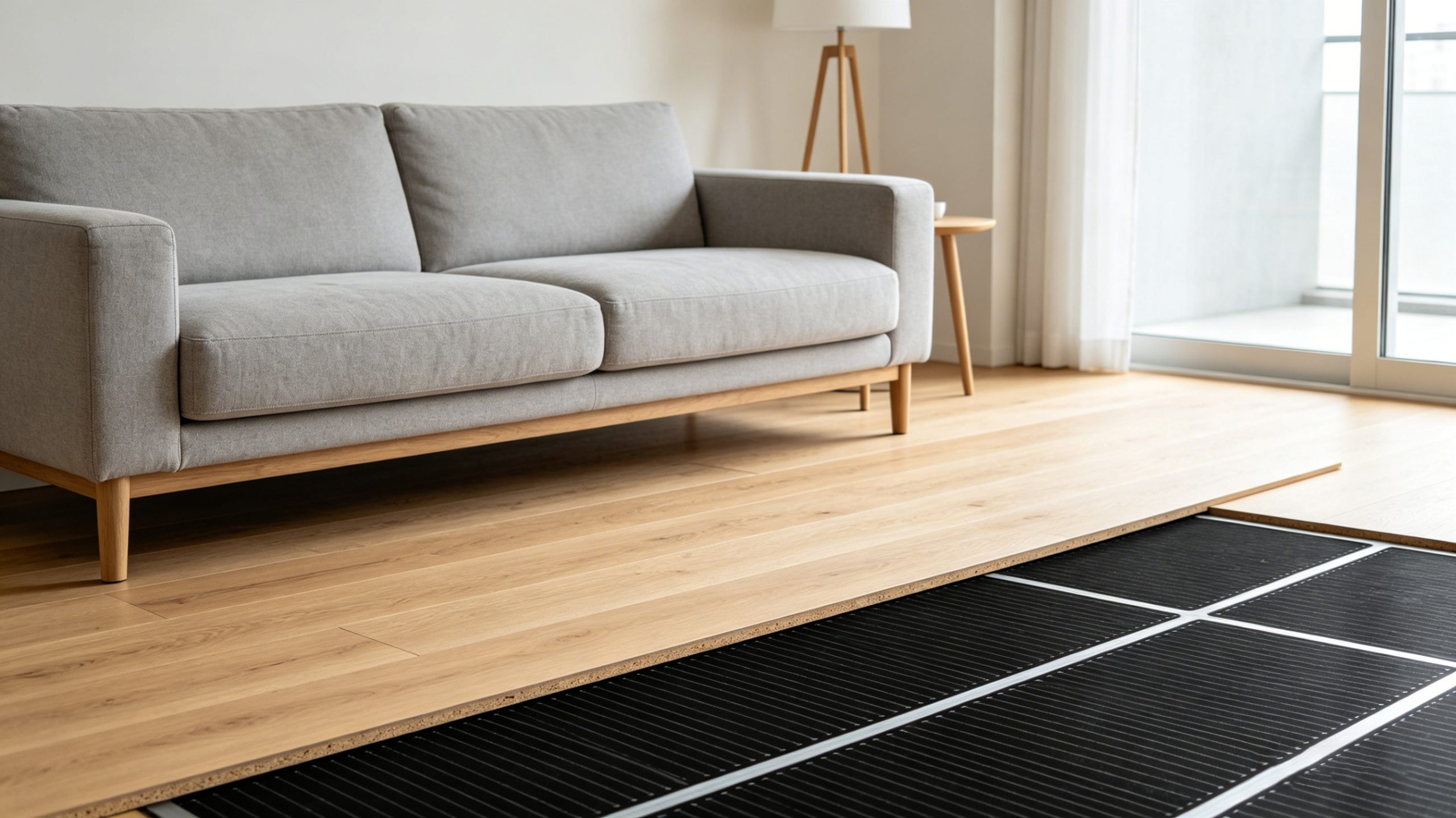

HOUSES AND FLATS
This heating film is ideal for primary heating in residential buildings and apartments, or as an upgrade to old heating setups.It also works perfectly for local heating and bathroom mirror defogging purposes.
HOTELS AND GUESTHOUSES
Separate single-room heating in hotels helps cut heating costs greatly.No more unnecessary energy waste on unoccupied rooms; fast startup delivers instant warmth whenever required.

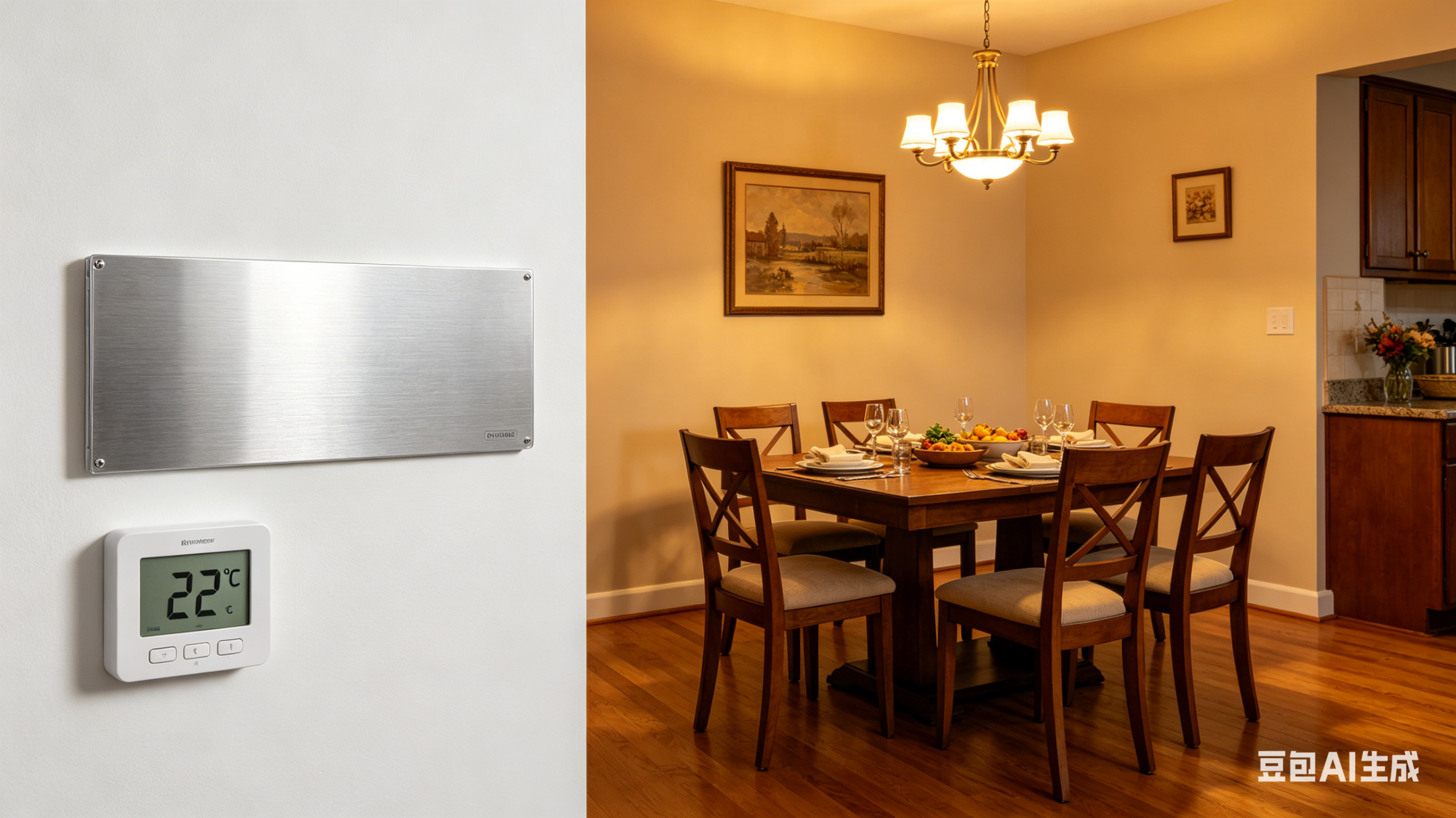

RESTAURANTS
Free from bulky radiators, interior layout design becomes completely unrestricted.
Thermostat-regulated floor heating allows accurate temperature control in separate areas, keeping daily running costs well under control.
OFFICE
Our heating system delivers targeted warmth exactly when and where it is required.
Unoccupied spaces remain unheated, so you never pay for unnecessary energy consumption.
FITNESS
Surface heating enables accurate temperature regulation without drying out indoor air, creating a perfectly comfortable environment for workouts and fitness activities.
KINDERGARTENS
Our heating film delivers comfortably warm flooring.
Different from conventional heating methods, it creates a cozy, pleasant environment for children to study and play.
Hospital
Our heating film provides uniform, gentle warmth throughout hospital wards, consulting rooms, and treatment areas. With precise thermostat control, each area can maintain a stable, optimal temperature.
Breeding Industry
Our heating film is ideal for the breeding industry. It delivers even, stable warmth for breeding houses and enclosures, preventing temperature swings that impact livestock growth and health
MOST COMMON QUESTIONS
FREQUENTLY ASKED QUESTIONS
FREQUENTLY ASKED QUESTIONS
How to Choose the Correct Power Rating for Heating Film？
.Heating power is the key factor for selection
. Buildings with energy efficiency class A–D can adopt low-power heating film: 80W/㎡ or 140W/㎡
. Buildings with energy efficiency class D–G are recommended for high-power models: 180W/㎡ or 220W/㎡
. For auxiliary heating, go with the lower power options: 80W/㎡ and 140W/㎡
. When used as the main heating source, select high-power versions: 180W/㎡ and 220W/㎡.
What is the ideal layout arrangement?
Full coverage of the entire room floor is not required.
Thanks to its high efficiency, the heating film can deliver excellent thermal comfort by covering just 75% of the floor area.
Prioritize installing it in frequently used zones such as walkways and the central living area.
Do not place the film under solid flat-bottom furniture; installation is allowed under legged furniture only.
Maintain a minimum clearance of 100mm / 4 inches from all walls.
Preparation before installation
A qualified electrician should run the power supply from the main distribution board to a maximum 16A safety switch. Power is then wired from the safety switch to the thermostat, with the SunAura heating film connected directly to the thermostat. The wiring follows the standard method applied for conventional heating mats.
For professional connection instructions and full installation guidelines, please contact our technical support team.
What is delivery time?
We are a professional source factory located in Qingdao, China. Once we receive your order, in-stock items can be shipped out the next working day. By sea or air freight, goods generally arrive at your destination within 7 to 15 days.
