Overview
The SunAura K1M is a wall-mounted WiFi smart thermostat engineered for electric heating systems — graphene heating film, underfloor heating mats, heating cables, wall warming panels and infrared heaters. Its high-definition colour LCD shows room temperature, set temperature and running status at a glance, and the five tactile keys (power, mode, timer, up, down) keep everyday control simple even without a phone.
Where the K1M really earns its place is control. It connects to your home WiFi network and the Tuya smart home app, so you can schedule weekly heating programmes, pre-heat your home before you arrive, switch between manual and automatic mode, and lock the settings against children — all remotely, from anywhere in the world. For homeowners, installers and heating system distributors, the K1M combines the reliability of a purpose-built heating thermostat with the convenience of a modern smart home device.
The K1M is manufactured by SunAura Thermal, an ISO-managed factory in Qingdao, China, with more than 17 years of OEM/ODM experience supplying heating controls to 50+ countries. Every unit is tested before shipment and carries CE and RoHS compliance, with factory SGS certification available on request.
Key Features
- 86×86 mm large LCD display — the standard wall-box footprint with a bright, readable colour screen that fits any room aesthetic.
- Display temperature recalibration — fine-tune the shown temperature against a reference thermometer for ±1 °C accuracy in real-world mounting positions.
- Power-off memory — user settings are permanently retained when the power is turned off; no re-programming after a power cut.
- Manual / automatic mode — run a fixed comfortable temperature, or follow your weekly programme automatically.
- Antifreeze function — protects pipes, tanks and holiday homes by keeping the space above freezing even when you are away.
- WiFi phone control — full remote operation through the Tuya app, with weekly scheduling and pre-heating.
- Child lock — a lock icon on the display and an app-side switch prevent children or guests from accidentally changing settings.
- Programmable weekly timer — up to six time periods per day for weekdays and rest days, each with its own target temperature, so heating follows your routine instead of running all day.

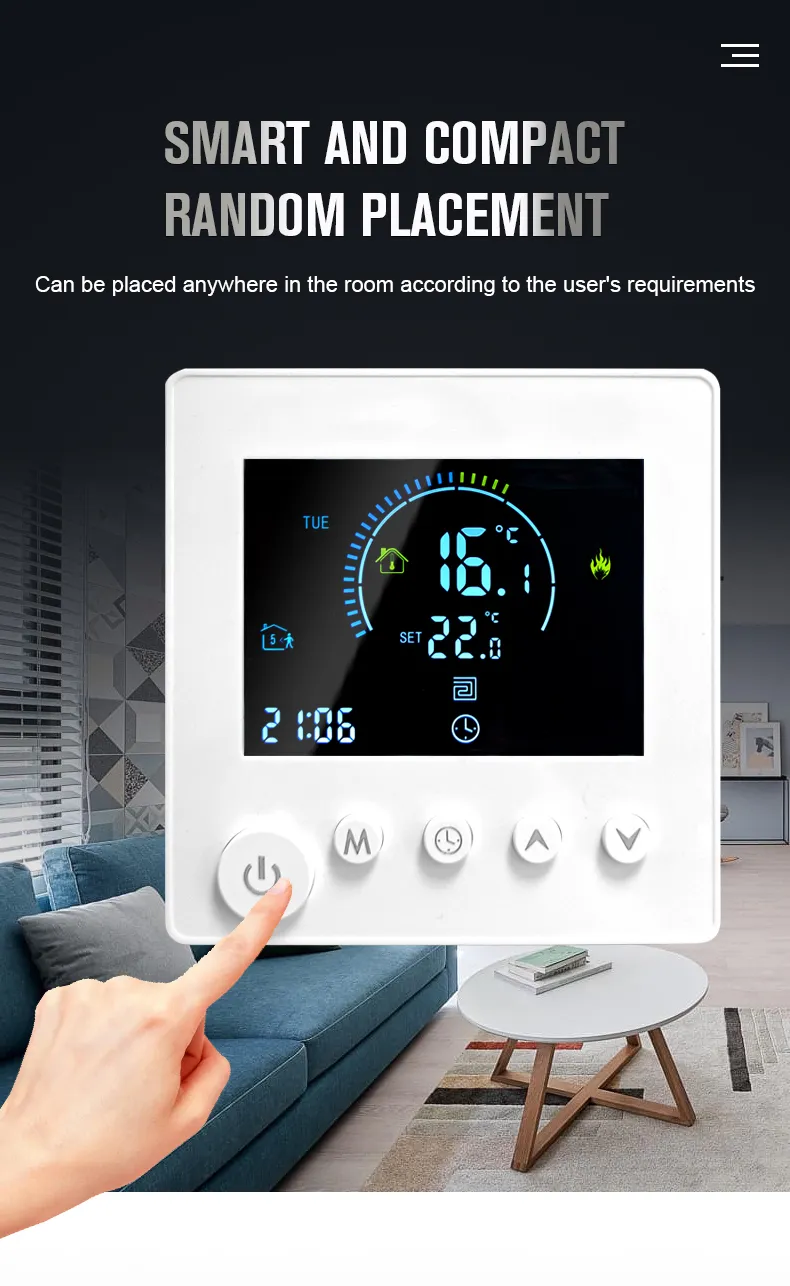

- Smart and compact, random placement — slim flush-mount design that suits living rooms, bedrooms, bathrooms, offices and commercial spaces.
App-side control (Tuya / Smart Life). Pair the K1M over a 2.4 GHz WiFi network in the app, then manage the weekly programme, switch between manual and automatic mode and toggle the child lock remotely. The same app screens let you set the upper and lower temperature limits (factory example 10–35 °C) and recalibrate the displayed room temperature by ±1 °C against a reference thermometer, so the reading matches the room where the thermostat is actually mounted. A lock icon on the display confirms the child lock is active.

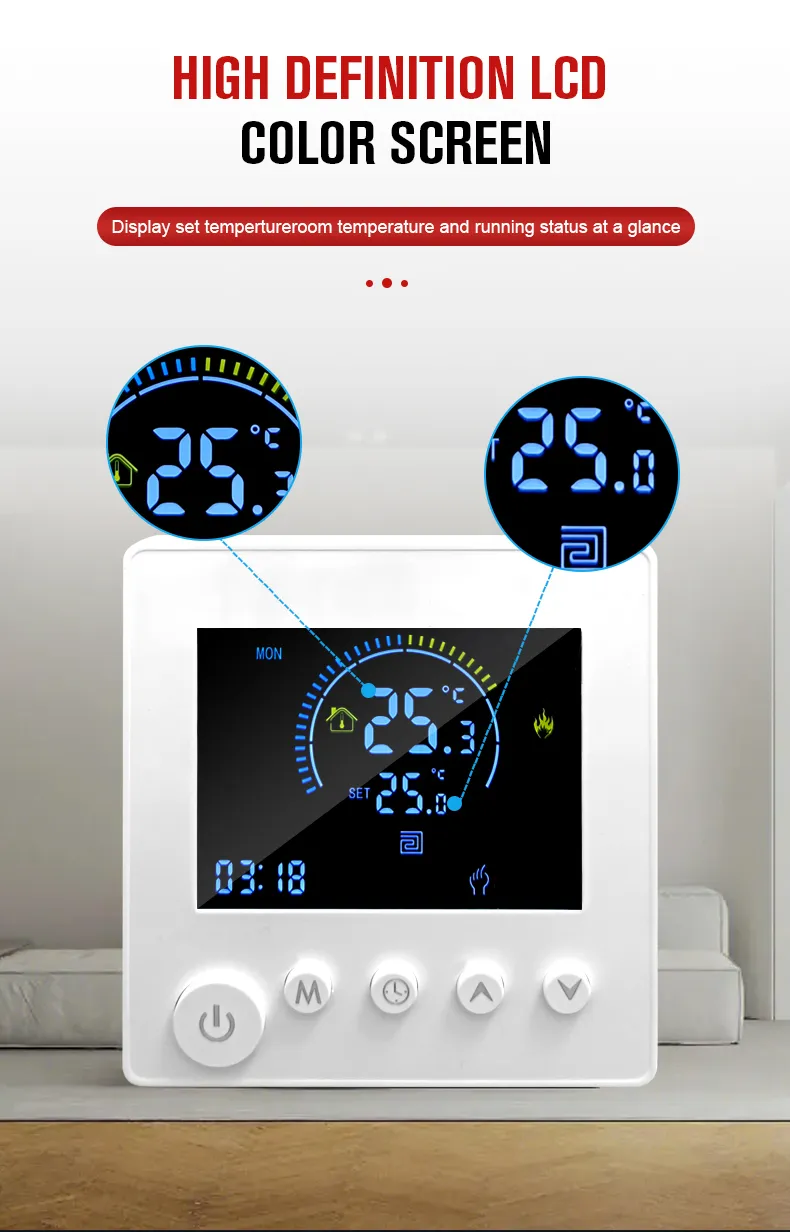

Display & Icon Guide
The K1M screen communicates the full heating state at a glance: the week icon shows the current day (MON–SUN), the time period icon identifies which programmed period is active, and the time display shows the clock in 24-hour format. The indoor temperature reading is shown large on the left of the display, the heating icon lights when the output is energised, the lock key icon confirms child lock status, and the mode icon indicates manual, automatic or holiday operation. Set temperature is always marked with the SET label so it is never confused with the measured room temperature.
Physically the K1M measures 86×86 mm on the front face with a flush depth of about 14 mm and a total depth of about 26 mm, matching the standard European 86-box mounting grid.
Default weekly programme (both weekday and rest day periods are pre-set to a comfortable 22 °C, fully adjustable):
- Weekday: 06:00 / 08:00 / 11:30 / 12:30 / 17:00 / 22:00 — six periods with independent temperature settings.
- Rest day: 08:00 / 23:00 — relaxed two-period programme for weekends and holidays.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | K1M intelligent WiFi temperature controller |
| Front panel size | 86 × 86 mm (standard 86-box mount) |
| Mounting depth | ≈ 14 mm flush / ≈ 26 mm total |
| Display | High-definition colour LCD (room temperature, set temperature, clock, week, mode, heating status) |
| Power supply | AC 100–240 V, 50/60 Hz (confirm exact voltage class at order) |
| Output rating | 16 A resistive standard; higher rating (25 A) on request |
| Sensor | Internal air sensor; external floor sensor option; temperature recalibration supported |
| Temperature range | Set limit configurable, e.g. 10–35 °C (upper/lower limits adjustable in app and device) |
| Control modes | Manual / automatic (weekly programme), holiday/antifreeze, child lock |
| Weekly timer | Up to 6 periods/day, weekday and rest-day programmes, independent temperatures |
| Wireless | WiFi 2.4 GHz, Tuya smart app (iOS / Android), works with Tuya-compatible voice assistants |
| Memory | Settings permanently retained on power loss |
| Safety | Antifreeze protection, child lock, over-temperature limit, flame-retardant housing |
| Certification | CE, RoHS; SGS factory certification available |
| Warranty | 2-year standard warranty with SunAura after-sales support |
Applications
The K1M is a universal controller for electric heating across the home and light commercial space:
- Electrothermal membrane / heating film — ceiling, wall and floor film installations.
- Electric heater & fan heaters — radiator-style and convection heaters up to the rated load.
- Wall warming painting / wall panels — decorative infrared heating panels.
- Heating cables — underfloor cable loops, pipe antifreeze and snow-melting runs.
- Graphene flooring — film beneath engineered wood, laminate and LVT.
- Electric heating kang / bed warming — traditional kang and mattress heating applications.

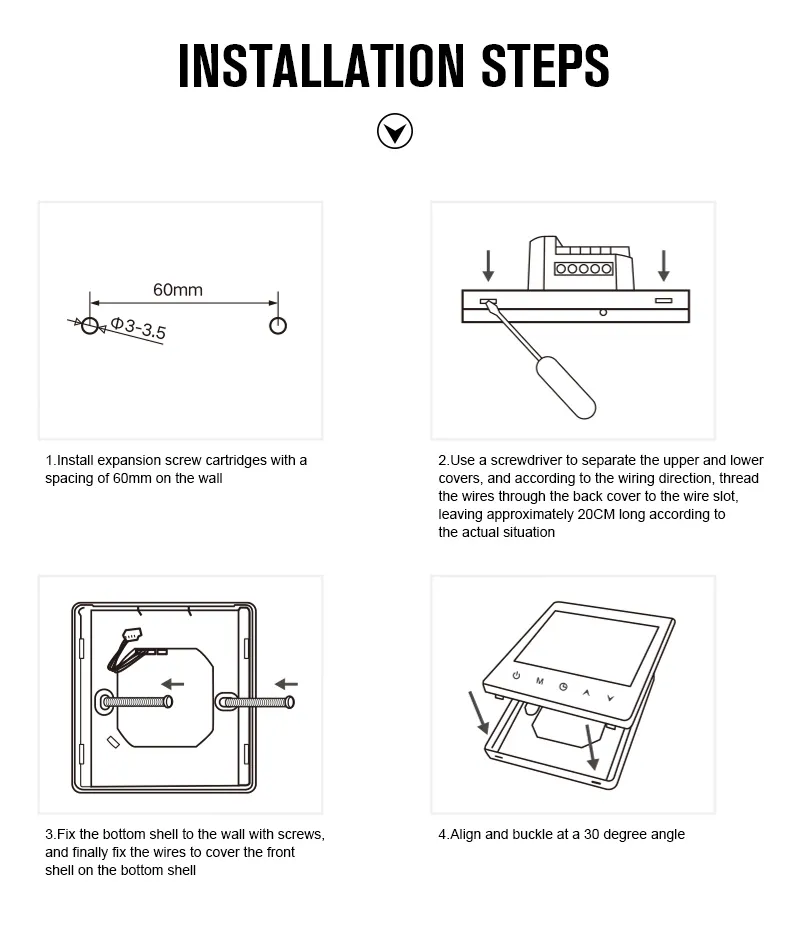

Installation
- Drill and mount — install the expansion screw cartridges on the wall at a spacing of 60 mm (drill Ø 3–3.5 mm).
- Wire the back cover — use a screwdriver to separate the upper and lower covers, thread the wires through the back cover into the wire slot according to the wiring direction, leaving about 20 cm of wire for connection.
- Fix the bottom shell — secure the bottom shell to the wall with the screws, complete the connections and place the wires neatly, then cover with the front shell.
- Snap the cover — align the cover and buckle it into place at a 30° angle, then power on and pair with the Tuya app.
For any heating load, the K1M should be wired by a qualified electrician and the connected load must not exceed the rated output. A dedicated installation guide and wiring diagram ship with every order, and our engineers are available by WhatsApp for remote commissioning support.
Compatibility with SunAura Heating Systems
The K1M is the natural control partner for the full SunAura electric heating range: graphene heating film, 160 W/m² heating mats, double-conductor heating cables, aluminum-film renovation mats and DIY installation kits. When you buy film, mat or cable from SunAura, we can pre-configure the K1M’s temperature range and floor sensor settings to match your exact floor build-up, and offer the complete package — heater, thermostat, insulation and accessories — from a single factory source with one warranty.
Quality, Certification & Support
SunAura Thermal has manufactured heating controls and electric heating products since 2008 from our Qingdao factory, operating with ISO-style quality management and in-line testing on every thermostat batch. The K1M is CE and RoHS compliant, with SGS certification documents available for review. We support distributors and OEM customers with private-labelled branding, custom programmes, packaging design and drop-ship logistics to more than 50 countries.
FAQ
1. Does the K1M work with Apple HomeKit or Google Home?
The K1M works with the Tuya ecosystem, which supports Tuya-compatible voice assistants and multi-brand smart home hubs. For a specific assistant ecosystem, tell us the target platform when ordering and we will confirm compatibility before shipping.
2. What happens to my settings during a power cut?
Settings are stored permanently in the device memory. When power returns, the K1M resumes the last programme and set temperature automatically — no re-programming needed.
3. How do I recalibrate the displayed temperature?
Use the temperature calibration option in the device menu or app to offset the reading against a reference thermometer, typically by ±1 °C to compensate for wall position or sensor location.
4. What is the antifreeze function?
Antifreeze mode keeps the room above freezing (protecting pipes and the heating system itself) while you are away, saving energy compared with leaving the heating on normally.
5. How does the child lock work?
Activate the child lock from the app or the device menu; the lock icon appears on screen and key presses no longer change settings. Deactivate it the same way when needed.
6. What loads can the K1M control?
The standard unit controls resistive heating loads up to 16 A (≈3,500 W at 220 V). If your project needs more, request the higher-rating version when ordering.
7. Can I use the K1M with an external floor sensor?
Yes — an external floor sensor option is available for floor-heating installations, and the sensor can be selected (internal or external) in the device settings.
8. What is the warranty and after-sales support?
Every K1M includes a 2-year warranty and direct after-sales support from SunAura — spare parts, configuration help and commissioning guidance by WhatsApp, in English, German, French and Chinese.
How to Buy the K1M WiFi Thermostat — Wholesale, OEM & Factory-Direct
Specifying a WiFi thermostat for electric floor heating with NTC floor sensor for a renovation project, a housing development or a private-label smart-home range? The SunAura K1M is the best-selling connected controller in our lineup — a Tuya-app paired, weekly-programmable wall thermostat that ships factory-direct from our Qingdao ISO-managed OEM plant to installers, distributors and heating brands in 50+ countries. We quote every enquiry the same working day.
Because the K1M runs on the Tuya smart home ecosystem, it slots straight into the app and voice-assistant setups your customers already use, while the five tactile keys and power-off memory mean it still behaves like a dependable heating controller if WiFi drops. Distributors value the 86×86 mm flush-mount format, the optional external floor sensor and the pre-configurable weekly programme; OEM customers value private-label branding, custom faceplate colours and tailored packaging.
| Ordering Option | Details |
|---|---|
| Wholesale price | Volume-tiered EXW / FOB Qingdao quotation based on 16 A / 25 A variant and quantity |
| MOQ | MOQ and pricing depend on model and quantity — send your enquiry for a same-day quotation |
| Bulk discounts | Available for installer and distributor projects, including mixed orders with K1 wired, heating film and mats |
| Free samples | Sample units available for app-pairing and bench evaluation; courier freight quoted separately |
| Lead time | Stocked SKUs ship quickly; private-label and OEM production scheduled per PO |
| OEM / private label | Custom faceplate colour, logo, packaging and pre-set weekly programmes |
| Certification documents | CE, RoHS and SGS documentation supplied with shipment for importer compliance files |
| Drop shipping | Consolidated container and drop-ship logistics supported to 50+ countries |
To order, tell us the load rating (16 A standard or 25 A on request), whether you need the external NTC floor sensor, the quantity and your destination port. Contact our sales team with your load list, or message us on WhatsApp for a same-day reply. Browse the full controller lineup on the thermostats and controls category page, and see how installers commission K1M jobs in our applications gallery.
Pairing the K1M with Other SunAura Controls
The K1M is rarely specified alone. In a typical residential project it pairs with the non-WiFi K1 wired LCD thermostat in rental or guest rooms where app control is not wanted, and with the larger K2M dual-version WiFi thermostat for hydronic and electric floors in living areas that also need to call a wall-hung gas boiler. For retrofit projects where running a new mains cable to every room is impractical, the RF wireless thermostat for boiler control adds room-by-room scheduling without wall chasing.
When K1M units are ordered alongside SunAura graphene heating film, 160 W/m² mats or double-conductor heating cables, we can pre-configure the temperature limits, floor-sensor threshold and default six-period weekly programme to match the floor build-up, so the installer only has to mount the back box and power on. More ordering and commissioning questions are answered on the thermostat FAQ page.
9. Does the K1M support a 2.4 GHz only WiFi network?
Yes — the K1M pairs over 2.4 GHz WiFi with the Tuya smart app. If your router broadcasts a combined 2.4 / 5 GHz network, pairing still works on the 2.4 GHz band; if you run a separate IoT SSID, put the K1M on that network for the most reliable connection. The thermostat runs its weekly programme locally even if the WiFi later drops.
10. Can I order the K1M as a Tuya smart thermostat for underfloor heating with private-label branding?
Yes. With more than 17 years of OEM/ODM experience, SunAura supplies K1M units to heating brands and distributors under private label, with custom faceplate colours, branded packaging and pre-set weekly programmes. Send your logo and target markets, and we will propose a tailored SKU list with MOQ and bulk pricing.
11. What cable or floor build-up should the NTC floor sensor be run under?
The external NTC floor-limiting probe should be routed beneath the heating film, mat or cable, centred between two heating runs, and secured with aluminium tape before the floor covering is laid. It is strongly recommended for wood, laminate and LVT finishes where surface temperature must be capped, and can be selected as the active sensor source in the device menu after wiring.
Can the K1M control electric underfloor heating film directly?
Yes. The K1M has a built-in 16 A relay rated for resistive electric loads up to 3600 W, so it switches heating film, heating mats and heating cables directly without an external contactor.
Does the K1M work with underfloor or air temperature sensing?
Both. It ships with an internal room-air NTC sensor and accepts an external floor-probe NTC (included) so you can regulate floor surface temperature for wood-floor protection.
Which app controls the K1M, and does it support voice?
The K1M pairs with the Tuya Smart / Smart Life app over 2.4 GHz WiFi. It supports Alexa and Google Home voice control for hands-free temperature adjustment.
Can you supply the K1M with our own brand (OEM)?
Yes. SunAura manufactures the K1M in volume and offers OEM/ODM: custom logo on the fascia, packaging and firmware language. MOQ and lead time are quoted per project.
