Overview

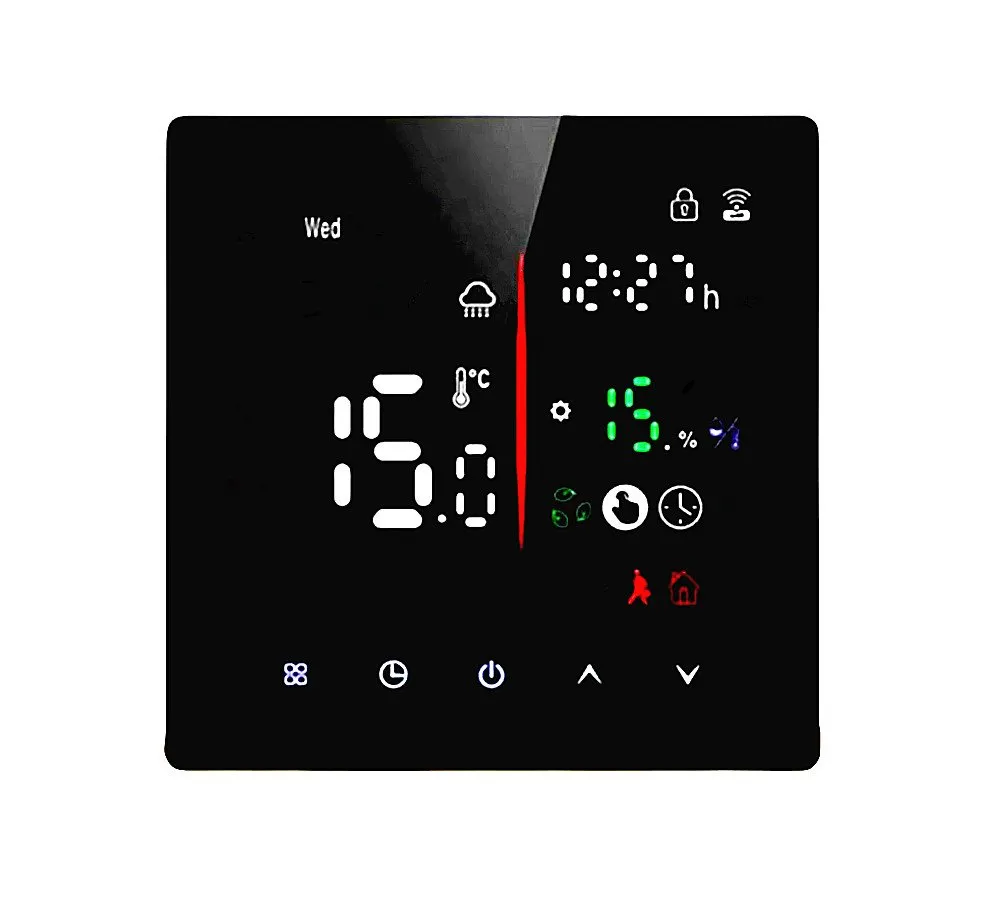

The SunAura K2M is a wall-mounted WiFi smart thermostat purpose-built for floor heating — electric underfloor heating film, heating cables, heating mats, wall-warming panels, as well as hydronic underfloor loops and gas boiler systems. Its large backlit LCD shows room temperature, set temperature, clock, week and running status on a single black or white glass faceplate, and five touch keys (power, mode, timer, up, down) keep everyday control effortless even when your phone is not nearby.
What sets the K2M apart is connected control. It joins your home WiFi network and pairs with the Tuya smart home app, so you can build a weekly heating schedule, pre-heat rooms before you arrive, switch between manual and automatic mode, activate antifreeze protection and lock the keys against children — all remotely, from anywhere in the world. Whether you are a homeowner upgrading a renovation, an installer wiring a new build, or a heating distributor sourcing a reliable smart controller, the K2M combines purpose-built floor-heating engineering with modern smart-home convenience.

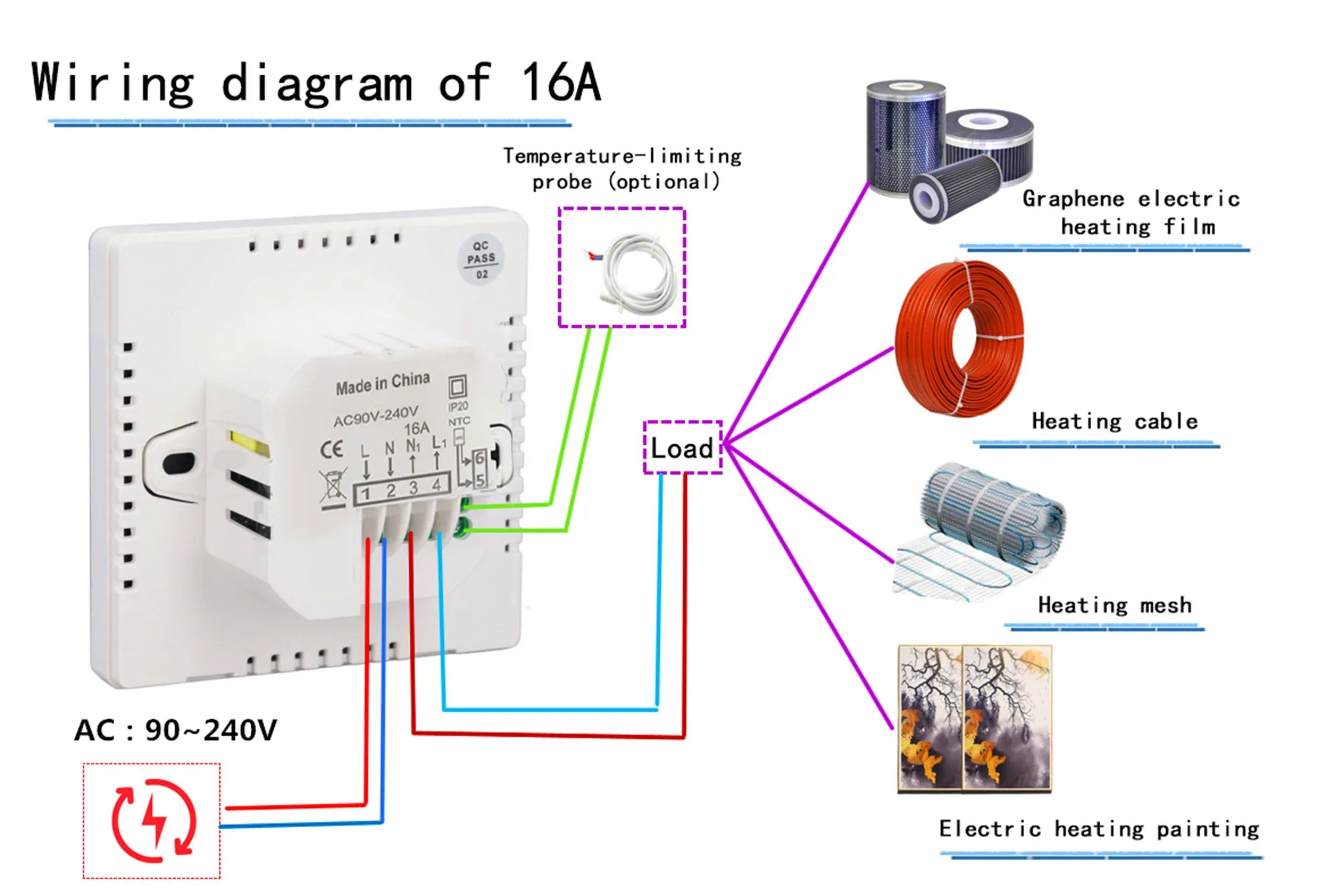

The K2M is offered in two wiring versions to match the load: a 16 A / 25 A direct-switching model for electric heating elements, and a 3 A dry-contact model with NO/NC terminals for gas boilers and hydronic actuators. It carries CE, RoHS and FCC compliance, draws under 1 W of standby power, and is produced by SunAura Thermal — an ISO-managed factory in Qingdao, China, with more than 17 years of OEM/ODM experience supplying heating controls to 50+ countries. Every unit is batch-tested before shipment.
Key Features
- Large LCD touchscreen display — a full-screen backlit LCD with white digits on a black or white glass panel; room temperature and set temperature are shown side by side, with ROOM TEMP and SET labels so readings are never confused.

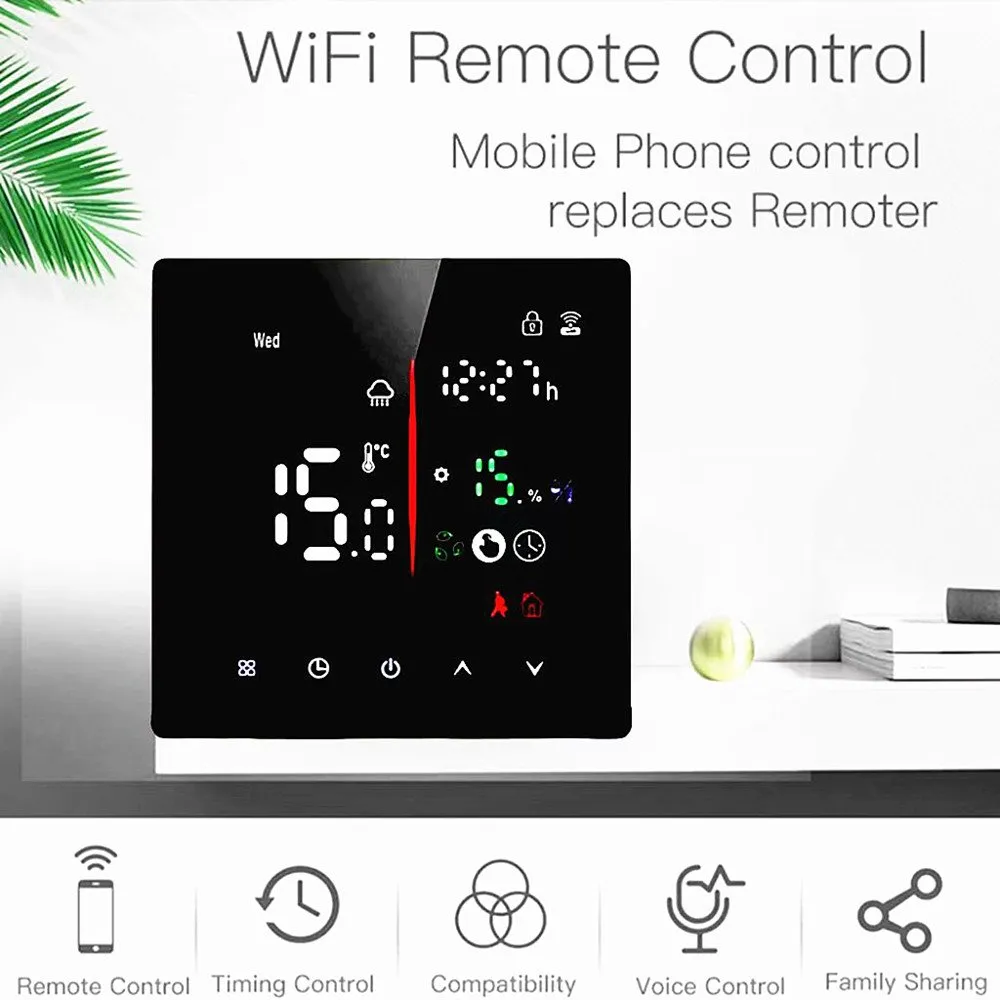

- WiFi app control (iOS / Android) — pair the K2M with the Tuya smart home app over 2.4 GHz WiFi and change temperature, switch modes or adjust the schedule from anywhere, not just from the wall.
- Weekly programmable timer — up to six time periods per day on weekdays and two relaxed periods on rest days, each with its own target temperature, so heating follows your routine instead of running around the clock.
- Manual / automatic mode — hold a fixed comfortable temperature in manual mode, or let the K2M follow your weekly programme automatically with the touch of the M key.
- Power-off memory — all user settings and schedules are permanently retained in non-volatile memory; after a power cut the K2M resumes the last programme automatically, with no re-programming.
- Child lock — a lock icon on the screen and an app-side switch prevent children or guests from changing settings by touching the keys.
- Antifreeze protection — keeps the space above freezing while you are away, protecting pipes, boilers and holiday homes with minimal energy use.
- Dual load versions — choose the 16 A (25 A on request) direct model for electric film, cable and mats, or the 3 A dry-contact model for gas boilers and hydronic valve actuators.
- Optional NTC floor sensor — connect an external temperature-limiting probe to cap floor surface temperature, recommended for wood, laminate and LVT floor finishes.
- Low standby power — self-consumption under 1 W, so the thermostat itself barely adds to your energy bill.
Display & Icon Guide

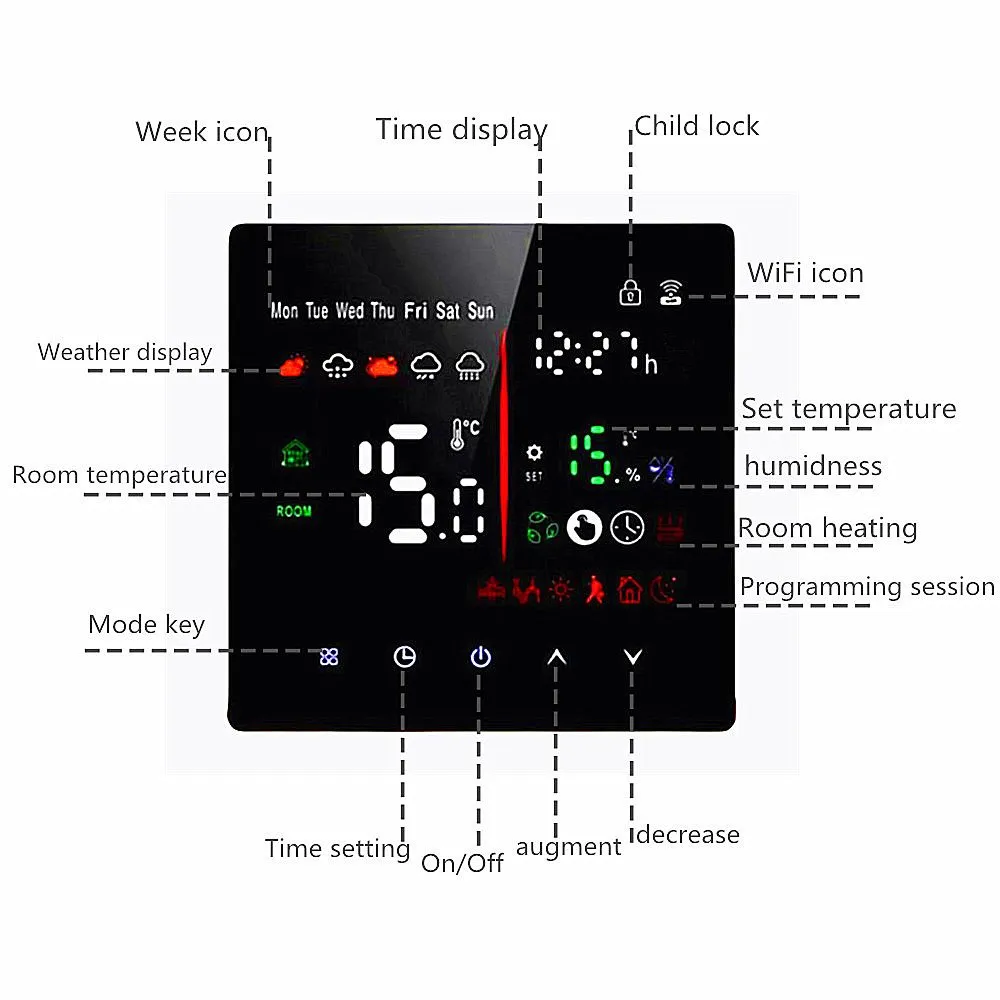

The K2M LCD communicates the full heating state at a glance. The week icon (MON–SUN) shows the current day, the time display shows the clock in 24-hour format, and the time-slot programming icon identifies which programmed period is active. Room temperature is shown large on the left with the ROOM TEMP label and a house icon; set temperature appears on the right with a SET label and a gear icon. The heating waves icon lights whenever the output is energised, the hand/lock icon confirms child lock status, and the clock and moon icons indicate the timer and sleep/night periods. The five touch keys below the screen are, from left to right: power, mode (M), timer/programming, up-regulation and down-regulation.

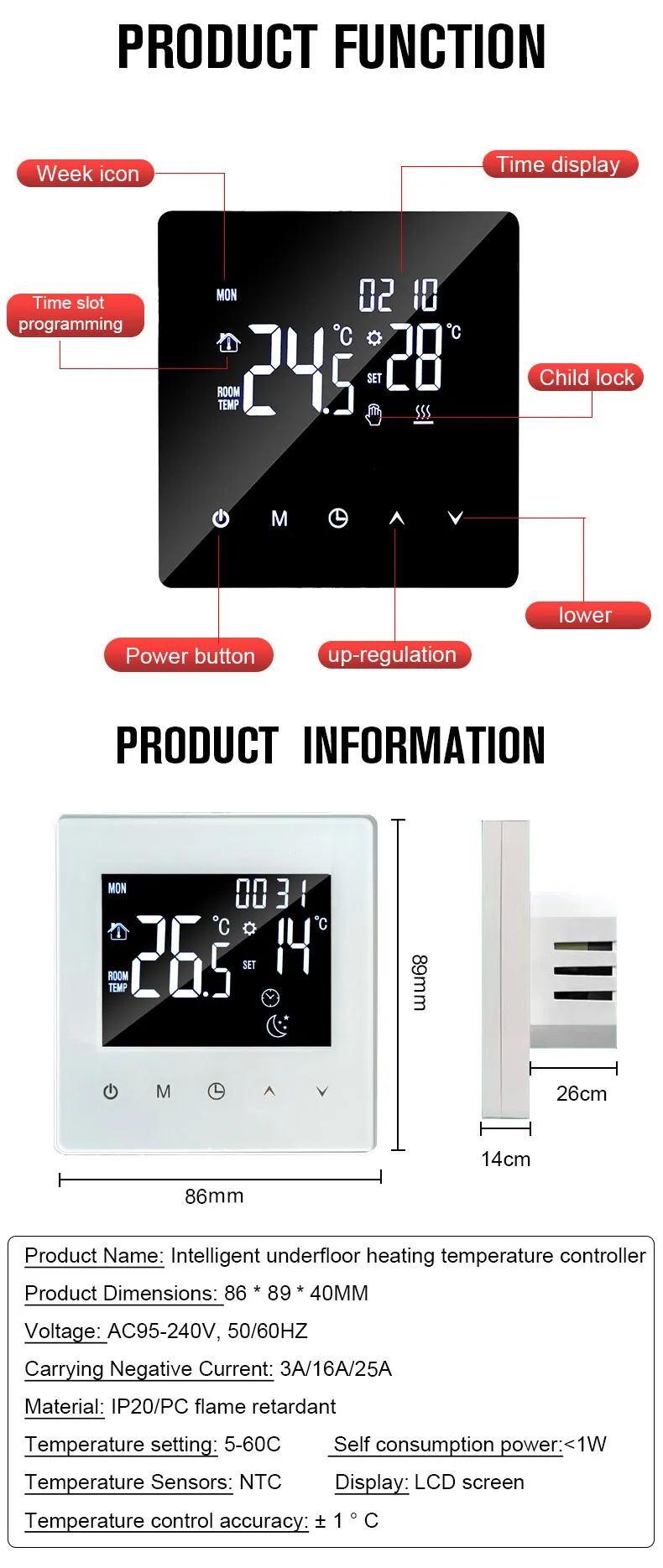

Physically the K2M measures 86 × 89 × 40 mm (width × height × depth), matching the standard European 86-box mounting grid, with a flush depth of about 14 mm and a total installed depth of about 26 mm.
Default weekly programme (all periods pre-set to a comfortable 22 °C, fully adjustable on device or in the app):
- Weekday (six periods): 06:00 wake-up / 08:00 leave / 11:30 return / 12:30 leave / 17:00 return / 22:00 sleep — each period with an independent target temperature.
- Rest day (two periods): 08:00 wake-up / 23:00 sleep — a relaxed weekend and holiday programme.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product name | Intelligent underfloor heating temperature controller (K2M WiFi series) |
| Faceplate / housing | Black or white glass touch panel; flame-retardant PC housing, IP20 |
| Dimensions | 86 × 89 × 40 mm (standard 86-box mount); ≈14 mm flush / ≈26 mm total depth |
| Display | Backlit LCD — room temperature, set temperature, clock, week, mode, heating, lock and programming icons |
| Control keys | Five touch keys: power, mode, timer/program, up, down |
| Power supply | AC 95–240 V, 50/60 Hz (wide-voltage design) |
| Output rating | 16 A resistive standard (25 A on request); 3 A dry-contact (NO/NC) version for boilers and actuators |
| Standby consumption | < 1 W |
| Temperature sensor | NTC internal air sensor; optional external NTC floor temperature-limiting probe |
| Temperature setting range | 5–60 °C (configurable upper/lower limits) |
| Control accuracy | ±1 °C, with display recalibration against a reference thermometer |
| Control modes | Manual, automatic (weekly programme), antifreeze, child lock |
| Weekly timer | Up to 6 periods/day weekday; 2 periods rest day; independent temperatures per period |
| Wireless | WiFi 2.4 GHz, Tuya smart app (iOS / Android), works with Tuya-compatible voice assistants |
| Memory | All settings permanently retained on power loss |
| Safety | Child lock, antifreeze, over-temperature floor limit (with external sensor), flame-retardant housing |
| Certification | CE, RoHS, FCC; batch-tested QC pass on every unit |
| Warranty | 2-year standard warranty with SunAura after-sales support |
Applications
The K2M is a universal floor-heating controller covering both electric and hydronic systems:
- Graphene electric heating film — under wood, laminate, LVT, tile and engineered flooring.
- Heating cables & heating mats / mesh — underfloor cable loops and pre-assembled mesh mats.
- Electric heating paintings / wall panels — decorative infrared wall-warming panels.

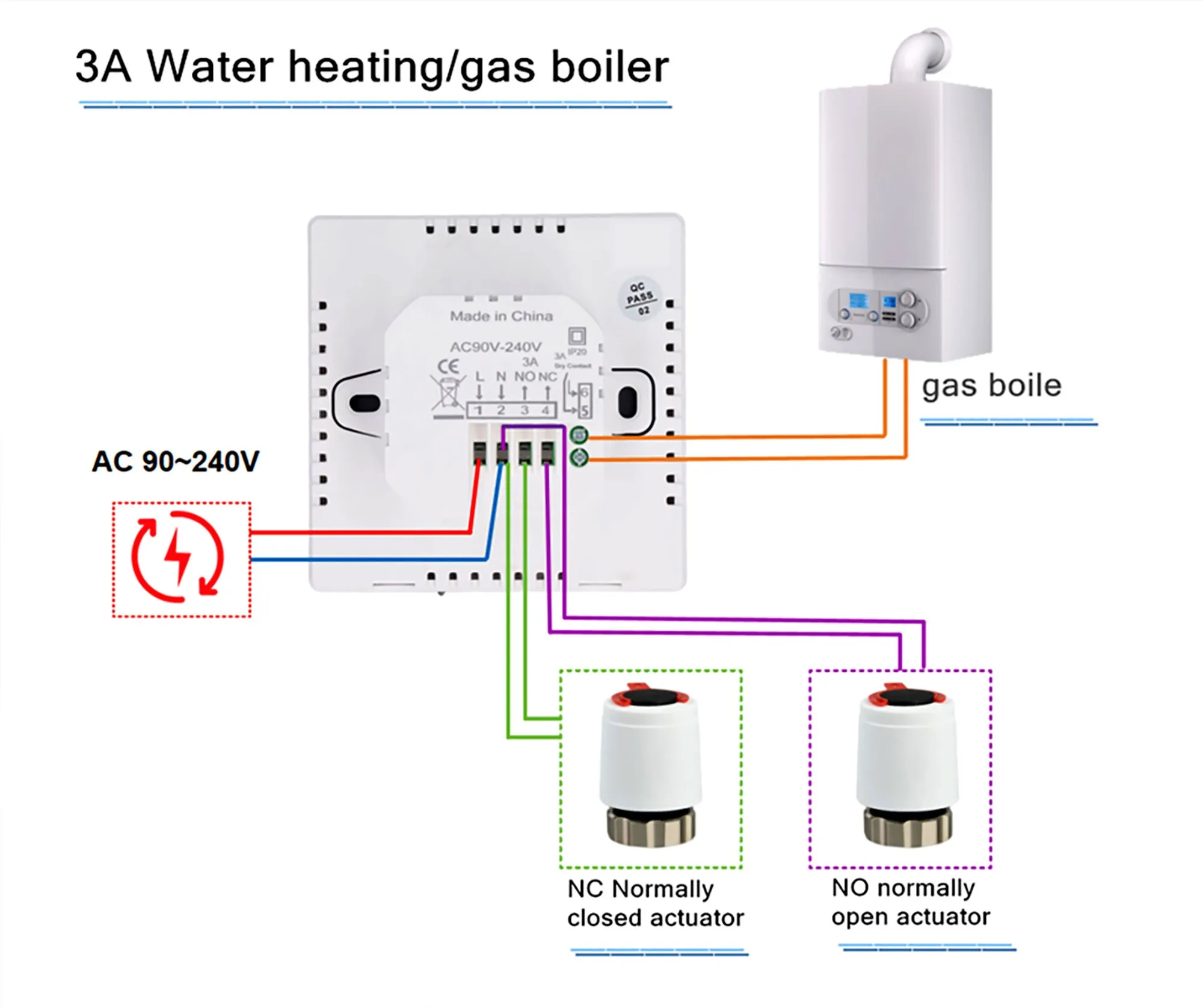

- Hydronic underfloor heating — water-based loops driven by NC or NO thermal actuators via the 3 A dry-contact version.
- Gas boilers — on/off boiler control with the 3 A dry-contact (NO/NC) relay.

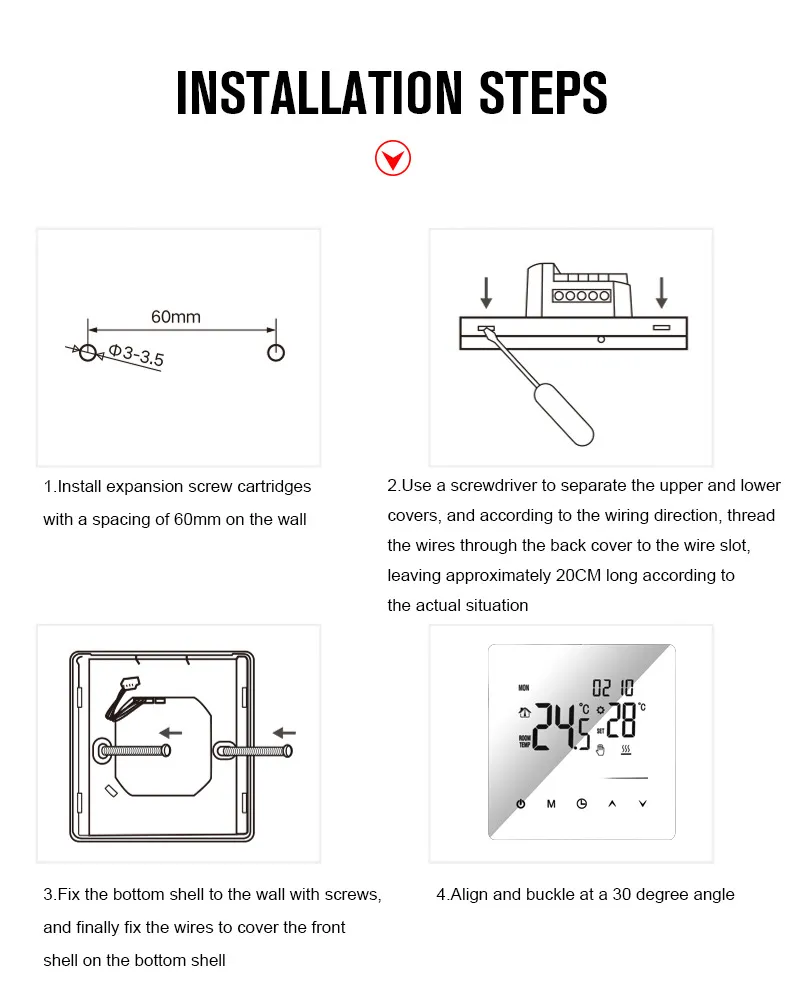

Installation
- Drill and mount — install the expansion screw cartridges on the wall at a spacing of 60 mm (drill Ø 3–3.5 mm).
- Wire the back cover — use a screwdriver to separate the upper and lower covers, thread the wires through the back cover into the terminal block according to the wiring diagram, leaving about 20 cm of wire for connection.
- Fix the bottom shell — secure the bottom shell to the wall with the screws, complete L / N / load / sensor connections neatly, then place the wires back into the cavity.
- Snap the cover — align the front cover and buckle it into place at a 30° angle, then power on and pair with the Tuya app.
For any heating load, the K2M should be wired by a qualified electrician, and the connected load must not exceed the rated output of the chosen version. The 16 A model switches electric heating directly; the 3 A dry-contact model must never switch a heating element directly — it controls an external boiler or actuator circuit. A dedicated wiring guide and user manual ship with every order, and our engineers are available by WhatsApp for remote commissioning support.
Compatibility with SunAura Heating Systems
The K2M is the natural smart control partner for the full SunAura floor-heating range: graphene heating film, 160 W/m² heating mats, double-conductor heating cables, aluminium-film renovation mats, hydronic underfloor loop kits and DIY installation packages. When you buy film, mat, cable or hydronic components from SunAura, we can pre-configure the K2M’s temperature limits, floor sensor setting and weekly schedule to match your exact floor build-up and household routine, and offer the complete package — heating element, thermostat, insulation and accessories — from a single factory source under one warranty. We also support private-labelled branding, custom faceplate colours and tailored software for distributors and OEM projects.
Quality, Certification & Support
SunAura Thermal has manufactured heating controls and electric heating products since 2008 from our Qingdao factory, operating under ISO-style quality management with in-line testing and a QC PASS sticker on every thermostat batch. The K2M is CE, RoHS and FCC compliant, with SGS certification documents available for review. We support distributors and OEM customers with private-labelled branding, custom weekly programmes, packaging design and consolidated shipping to more than 50 countries. The K2M is offered in multiple faceplate finishes and current ratings, all backed by a 2-year warranty and direct after-sales support in English, German, French and Chinese.
FAQ
1. What is the difference between the K2M 16 A, 25 A and 3 A versions?
The 16 A version switches electric heating loads (film, cables, mats up to ≈3,500 W at 220 V) directly. The 25 A version is a higher-current option for larger electric heating projects, available on request. The 3 A version is a dry-contact relay with NO/NC terminals — it does not switch heating elements directly; it controls a gas boiler or hydronic thermal actuator circuit. Choose the rating according to your actual load.
2. Does the K2M work with Apple HomeKit or Google Home?
The K2M works with the Tuya smart home ecosystem, which supports Tuya-compatible voice assistants and multi-brand smart home hubs. For a specific assistant ecosystem, tell us the target platform when ordering and we will confirm compatibility before shipping.
3. What happens to my schedule during a power cut?
All settings and weekly programmes are stored permanently in non-volatile memory. When power returns, the K2M resumes the last programme and set temperature automatically — no re-pairing or re-programming is needed.
4. How do I set up the weekly heating programme?
Use the timer key on the device or the scheduling screen in the Tuya app to set each period’s start time and target temperature. The weekday programme offers six periods and the rest-day programme two periods, each with an independent temperature. A quick-start guide ships with every unit.
5. Do I need a floor sensor with the K2M?
An external NTC floor temperature-limiting probe is optional but strongly recommended for wood, laminate and LVT floor finishes, where floor surface temperature must be capped to protect the flooring. For tile and stone finishes, the internal air sensor alone is sufficient. The sensor source (internal or external) is selectable in the device menu.
6. How accurate is the temperature measurement?
The K2M measures with ±1 °C accuracy. Where the wall position makes the reading run slightly warm or cool, the display can be recalibrated against a reference thermometer in the device menu or app.
7. Can I lock the thermostat so children cannot change it?
Yes. Activate the child lock from the app or the device menu; the hand/lock icon appears on screen and touch keys no longer change settings. Deactivate it the same way when needed.
8. What is the warranty and after-sales support?
Every K2M includes a 2-year warranty and direct SunAura after-sales support — spare parts, configuration help and commissioning guidance by WhatsApp, in English, German, French and Chinese.
How to Buy the K2M — Wholesale, OEM & Factory-Direct
Specifying a WiFi thermostat for hydronic underfloor heating and electric film on the same project? The SunAura K2M covers both load classes from one glass faceplate: the 16 A / 25 A direct-switching version drives electric film, mats and cables, while the 3 A dry-contact (NO/NC) version calls a wall-hung gas boiler or hydronic thermal actuator. Installers, heating-system distributors and private-label brands buy the K2M factory-direct from our Qingdao ISO-managed plant, with CE, RoHS and FCC compliance and SGS documentation on file. We quote every enquiry the same working day.
Because the K2M pairs with the Tuya smart app over 2.4 GHz WiFi, your customers get a boiler thermostat with weekly programming, antifreeze protection and child lock — all controllable from a phone or the glass touchscreen — while the 86×89×40 mm body fits the standard European 86-box grid. OEM customers can request black or white glass faceplates, private-label branding, custom weekly programmes and tailored packaging.
| Ordering Option | Details |
|---|---|
| Wholesale price | Volume-tiered EXW / FOB Qingdao quotation based on 16 A / 25 A electric or 3 A dry-contact variant and quantity |
| MOQ | MOQ and pricing depend on model and quantity — send your enquiry for a same-day quotation |
| Bulk discounts | Available for installer and distributor projects, including mixed electric + dry-contact SKUs |
| Free samples | Sample units available for wiring and app-pairing evaluation; courier freight quoted separately |
| Lead time | Stocked SKUs ship quickly; private-label and OEM production scheduled per PO |
| OEM / private label | Custom glass faceplate colour, logo, packaging and pre-set weekly programmes |
| Certification documents | CE, RoHS, FCC and SGS documentation supplied with shipment for importer compliance files |
| Drop shipping | Consolidated container and drop-ship logistics supported to 50+ countries |
To order, tell us which variant each room needs (16 A / 25 A for electric loads, 3 A NO/NC for boilers and actuators), whether you need the external NTC floor-limiting probe, the quantity and your destination port. Contact our sales team with your load list, or message us on WhatsApp for a same-day reply. Browse the full controller range on the thermostats and controls category page, and see mixed-load installations in our applications gallery.
Matching the K2M to Your Heating Zones
On a typical renovation, the K1M WiFi thermostat for electric floor heating handles bedroom film circuits on the 16 A version, while a K2M 3 A dry-contact unit in the hallway calls the wall-hung boiler and drives the manifold actuators for the hydronic living-room loop. Where the customer wants hands-free voice control across the whole home, the K9 colour-touch WiFi thermostat with Alexa, Google Home and Yandex Alice is the upgraded SKU on the same 86 mm wall box. For simple retrofit jobs without WiFi, the wired K1 wired LCD thermostat keeps the guest-room budget down. More ordering and compatibility questions are answered on the thermostat FAQ page.
9. Can one K2M control both an electric film room and a hydronic room?
No — each K2M unit is one wiring variant. The 16 A / 25 A version switches the electric heating element directly; the 3 A dry-contact version only gives a volt-free NO/NC signal to a boiler or actuator. Run one K2M per zone and choose the variant that matches what that zone needs to switch; both versions share the same glass faceplate and app experience.
10. How does the external NTC floor sensor protect wood and laminate floors?
The NTC floor-limiting probe is run beneath the film or cable and feeds the K2M a continuous floor-temperature reading. If the surface approaches the upper floor limit set in the menu, the K2M cuts out the output even if the room air still feels cool. This is the standard protection for wood, laminate and LVT finishes, and is selectable as the active sensor source in the device menu.
11. Can I order K2M thermostats in bulk with private-label branding?
Yes. SunAura supplies K2M units under private label to heating brands and distributors, with black or white glass faceplates, custom packaging and pre-configured weekly programmes. Send your logo, target markets and the split between electric (16 A / 25 A) and dry-contact (3 A) SKUs, and we will quote MOQ, bulk pricing and lead time the same day.
How does the K2M control floor heating safely?
The K2M combines an internal air sensor with an external NTC floor probe (3 m lead, included). You can set a floor temperature limit to protect sensitive wooden or laminate floors while maintaining room comfort.
Can the K2M be scheduled by the hour?
Yes. It offers a 7-day, 6-events-per-day weekly programming schedule. You can set different temperatures for mornings, daytime, evenings and nights, and copy one dayu2019s program to others.
Does the K2M work with Tuya, Alexa and Google?
Yes. The K2M connects over 2.4 GHz WiFi to the Tuya Smart / Smart Life app. Once linked, voice control via Alexa and Google Home is available, and you can share the device with family members.
What is the K2M switching capacity?
The K2M relay is rated 16 A resistive, suitable for up to 3600 W of electric underfloor heating (film, mat or cable). For larger multi-zone projects, pair the K2M with an external contactor.
Do you offer OEM branding on the K2M?
Yes. SunAura manufactures the K2M in our own factory and provides OEM/ODM: custom logo, custom fascia colour, multilingual firmware and private-label packaging. MOQ per project.
