Overview
The HY312 WiFi Touch Screen Thermostat is a wall-mounted room controller for electric underfloor heating: a glass-front touch panel that reads the room and a 3 m floor sensor, then cycles your heating mat or film to hold the temperature you set. Wide 90–240 V supply, 16 A direct load and built-in WiFi make it a drop-in smart upgrade for homes, hotels and offices that want app control without rewiring. It is one of the room controllers in our thermostats & controls range.
Pair it with our electric heating mats, graphene heating film or heating cables to complete an electric underfloor system. If you prefer a button-and-knob user interface for the same job, compare our Y603H WiFi thermostat or knob WiFi thermostat.
Key Features
- Glass touch screen — clean, swipeable interface that wipes down easily in bathrooms and kitchens.
- Built-in WiFi — remote temperature control, scheduling and away mode from a smartphone, at home or abroad.
- 16 A direct load — switches electric underfloor heating mats, film and cables directly; no contactor needed for typical rooms.
- 90–240 V wide supply — works on both 110–120 V and 220–240 V mains, one SKU for every export market.
- 3 m NTC floor sensor — measures actual floor temperature to protect wood, laminate and carpet finishes.
- Energy-saving setback — programmable scheduling lowers temperature when rooms are empty.
- Flame-retardant PC + ABS body — modern flush-mount design for offices, buildings and homes.
- Child lock & freeze protection — locks settings for public/hospitality use and holds frost prevention in empty rooms.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HY312 (touch screen type) |
| Application | Electric underfloor heating — rooms, offices, buildings, homes |
| Power supply | 90–240 V~ 50/60 Hz |
| Current load | 16 A resistive (electric heating direct switch) |
| Sensor | Built-in room sensor + 3 m external NTC floor sensor |
| Temperature range | 5–35 °C adjustable; floor-limit protection configurable |
| Display | Backlit touch screen |
| Connectivity | 2.4 GHz WiFi, smartphone app control |
| Body material | Anti-flammable PC + ABS, modern design |
| Mounting | Standard 60 mm wall back box, flush mount |
| Warranty | 2 years; online technical support, free spare parts, return & replacement |
| Certification | CE, RoHS |
Wiring & Installation
The HY312 mounts on a standard 60 mm recessed back box and wires like any room thermostat: supply L/N terminals feed the unit, and the load terminals switch the live to your heating circuit. For an electric underfloor mat up to 16 A the thermostat switches the load directly; for larger rooms above the 16 A rating, drive a contactor from the load output. Run the 3 m floor sensor in its conduit beneath the floor finish, between two cable runs, and confirm which sensing mode (air, floor, or floor-limited air) you want in the menu. WiFi pairing follows the standard app wizard on 2.4 GHz networks. Always commission the circuit with RCD protection per local wiring rules.
Compatible Heating Systems
- Electric heating mats — tile and stone floor builds up to 16 A per circuit.
- Graphene heating film — thin film rooms, wood and laminate finishes.
- Heating cables — looped underfloor and wet-area circuits.
- Bathroom floor heating mat — wet-room builds with floor-sensor protection.
- Whole underfloor heating systems — room-by-room zoning design.
Not for direct switching of gas boilers or wet underfloor manifolds — choose a 3 A relay model for those loads.
WiFi App & Remote Control
Through the smartphone app you can set the target temperature per room, build a 7-day schedule (wake, leave, return, home, sleep), pre-warm the house before arrival, and switch to an away setback while travelling. Multiple thermostats group into one home dashboard, so a whole-floor hotel or apartment build can be managed from a single screen. Frost-protection mode keeps the minimum temperature through winter holidays, and child lock prevents guests or children from altering the schedule.
Safety & Certifications
The enclosure is flame-retardant PC+ABS, every unit passes factory testing, and the range carries CE and RoHS certification under ISO 9001-managed production. Floor-sensor mode caps the floor temperature to protect laminate, wood and carpet finishes; the relay output isolates the mains load, and installation should be RCD-protected. Freeze-protection and child-lock functions add safe defaults for holiday homes and public buildings.
Factory & Quality
SunAura Thermal has designed and manufactured heating controls and elements in Qingdao since 2008, shipping thermostats, mats and cables to more than 50 countries. The HY312 is produced on our own SMT and test lines with 100 % aging and load-test screening, and backed by a 2-year warranty with online technical support, free spare parts and return/replacement service. Project solution support includes graphic design and 3D model design for BIM-style tenders. The full control range is listed in the thermostats & controls category.
Packaging & Shipping

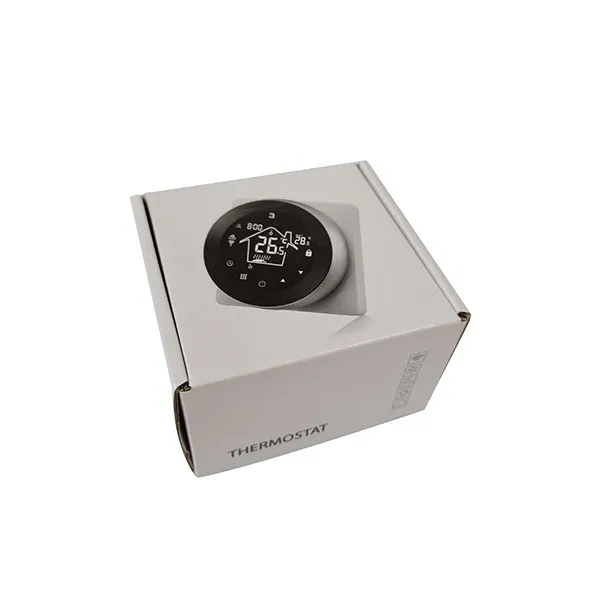

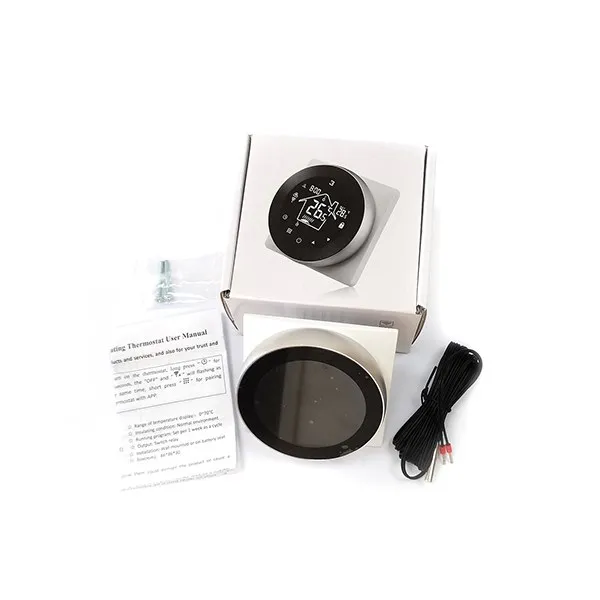

Each thermostat ships in a colour retail box with the 3 m floor sensor, wiring terminals and multilingual quick-start guide. Cartons are pallet-optimised for sea freight; express courier covers urgent project replacements. CE/RoHS documents and batch test records travel with the shipment, and we can prepare destination-market labels and multilingual manuals for distributor orders.
OEM / ODM
Private-label programmes cover logo silkscreen on the glass panel, custom retail packaging, app branding (where the platform permits), and multilingual manuals. ODM projects — custom touch UI, fascia colours, or bundled mat-plus-thermostat kits — are handled in-house from prototype to production, with engineering support for hotel and apartment tenders. Minimum order quantities are flexible for trial distributors; samples are available for evaluation before a bulk order.
Wholesale Pricing & How to Buy
Pricing is factory-direct and tiered by quantity: distributors, heating contractors and project buyers receive volume tiers, and sample units are offered before a bulk order. Tell us your system voltage, the heating type (mat / film / cable), room count and whether you need app branding; we will confirm the correct load rating and return a same-day quotation. Contact our sales team for factory price, wholesale terms and free-sample arrangements.
FAQ
Does the HY312 switch a 16 A underfloor mat directly?
Yes — its rated load is 16 A resistive for electric heating, so typical 8–12 m² mat circuits switch directly. Larger rooms above 16 A should use a contactor driven by the thermostat’s load output.
Can it work on 110–120 V and 220–240 V markets?
Yes. The wide 90–240 V~ 50/60 Hz supply means one model fits North American 120 V circuits and European/Asian 230 V circuits — simplify stock to a single SKU.
Do I need the external floor sensor under laminate or wood?
Yes, strongly recommended. The 3 m NTC floor sensor lets the thermostat run floor-limited mode, capping the floor temperature at the finish manufacturer’s limit and protecting wood and laminate from overheating.
Does it control a gas boiler or wet underfloor manifold?
This model is a 16 A electric-heating controller. For boilers and wet systems choose our 3 A relay models, such as the programmable touch thermostat with water-heating contact output, or ask us for the correct variant for your project.
Is WiFi control secure and does it work remotely?
The thermostat pairs on 2.4 GHz WiFi through the standard app wizard, and once bound it can be controlled from anywhere — scheduling, away mode and freeze protection. A local lockout (child lock) keeps public rooms on the programmed schedule.
