Overview
The Programmable Touch Thermostat (Model 1030) is a room controller that handles both electric underfloor heating at 16 A and low-voltage boiler / wet-underfloor signals at 3 A — one touch panel for two system types. Its 7-day programmable schedule cuts energy use by dropping temperatures in empty rooms, while the glass touch face fits modern office, building and home interiors. It belongs to our thermostats & controls range.
Use it with electric heating mats, graphene heating film, or as the room-side control of a gas-boiler wet system. For app remote control, step up to our Y603H WiFi thermostat; for a simpler floor-only controller see the floor heating system thermostat.
Key Features
- Dual heating support — 16 A direct switch for electric mats/film/cables, plus 3 A dry-contact output for boilers and wet manifolds.
- 7-day programmable schedule — up to several time periods per day; setback temperatures when rooms are empty.

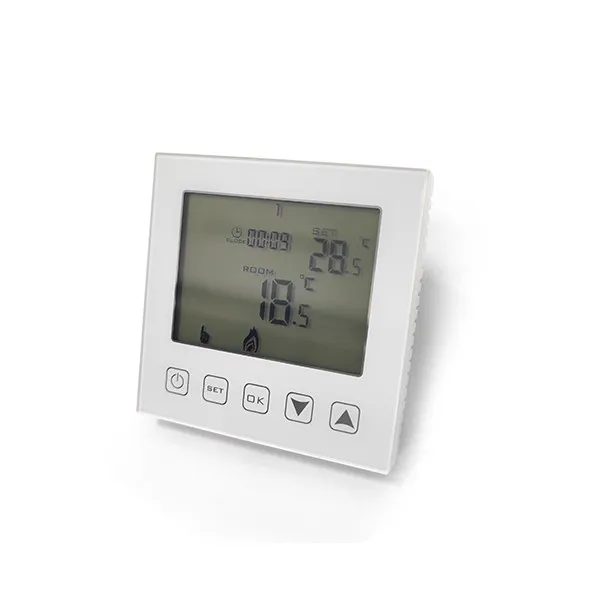

- Touch screen interface — backlit glass panel, easy to read and wipe clean.
- 90–260 V wide supply — one model for 110–120 V and 220–240 V export markets.
- 3 m NTC floor sensor — floor-limited control protects wood and laminate finishes.
- Energy-saving mode — occupancy setback and frost protection for vacant properties.
- Flame-retardant PC + ABS body — modern design for offices, hotels and homes.
- Child / guest lock — locks the schedule in public and hospitality rooms.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Programmable touch screen room thermostat |
| Application | Office, building, home — electric heating systems |
| Power supply | 90–260 V~ 50/60 Hz |
| Current load | 16 A (electric heating) / 3 A (water heating, dry contact) |
| Sensor | Built-in room sensor + 3 m external NTC floor sensor |
| Temperature range | 5–35 °C adjustable; configurable floor limit |

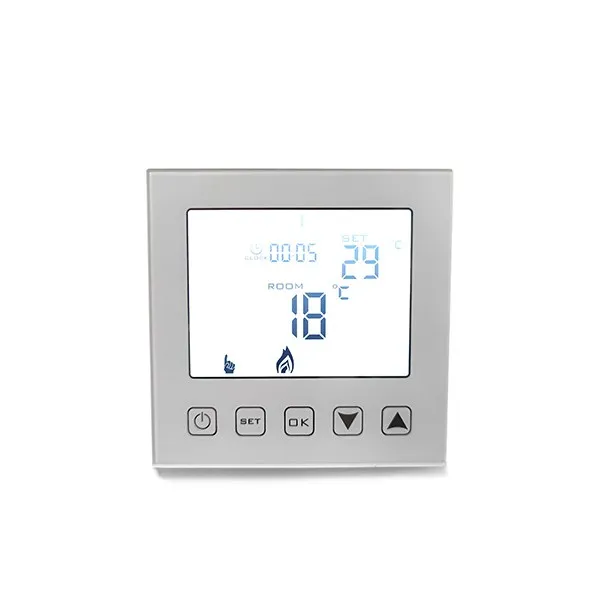

| Display | Backlit touch screen |
| Body material | Anti-flammable PC + ABS, modern design style |
| Mounting | Standard 60 mm wall back box |
| Warranty | 2 years; online technical support, free spare parts, return & replacement |
| Certification | CE, RoHS |
Wiring & Installation
Mount on a standard 60 mm recessed back box. Supply L/N feed the terminals; for electric underfloor loads up to 16 A the thermostat switches the heating circuit directly. For a gas boiler or wet manifold, connect the 3 A dry-contact output to the boiler’s external thermostat terminals (low-voltage safe). Lay the 3 m NTC floor sensor under the floor finish between two cable runs, and select the control mode — air sensing, floor sensing, or floor-limited air sensing — in the menu. Each circuit should be RCD-protected; commission by a qualified electrician.
Compatible Heating Systems
- Electric heating mats — direct 16 A switching under tile and stone.
- Graphene heating film — thin film rooms and renovated floors.
- Heating cables — looped underfloor circuits up to rated load.
- Gas boilers & wet underfloor manifolds — via the 3 A dry-contact output.
- Whole underfloor heating systems — mixed-build room zoning.
Because it supports both load types, it is a practical spec for retrofit projects mixing electric rooms with one boiler zone.
Programming & Operating Modes
Touch through the menu to set weekday/weekend schedules: wake, away, return and sleep temperatures per day. At setback periods the thermostat holds a lower temperature, and frost protection holds a safe minimum when the property is empty. Manual temporary override lasts until the next schedule period; child lock freezes the programme for shared and hospitality rooms. Calibration offset, sensor choice and floor-temperature limit are all set on-device — no app required for daily use.
Safety & Certifications
Flame-retardant PC+ABS enclosure, 100 % factory load and aging tests, CE and RoHS certification under ISO 9001 production management. Floor-sensor mode caps floor temperature for laminate and wood protection; the isolated 3 A contact keeps low-voltage boiler wiring separated from mains. RCD-protected supply and professional installation complete the safety chain.
Factory & Quality
SunAura Thermal has manufactured heating controls and elements in Qingdao since 2008, exporting to more than 50 countries. This programmable touch model is built and tested on our own SMT production and burn-in lines, and carries a 2-year warranty with online technical support, free spare parts and return/replacement service. Project support includes graphic design and 3D modelling for tender documentation. Browse the whole line in the thermostats & controls category.
Packaging & Shipping
Units ship in retail boxes with the 3 m floor sensor, fixing kit and multilingual quick-start guide; cartons are pallet-optimised for sea freight, with express courier for urgent replacements. CE/RoHS certificates and batch test records accompany each shipment, and destination-market labelling or multilingual manuals are available for distributor programmes.
OEM / ODM
We offer logo silkscreen on the fascia, custom packaging, multilingual manuals, and ODM work on the touch UI and fascia design. Bundled kits — thermostat + floor sensor + underfloor mat in one branded box — are a regular export format for installer brands. Samples are available for evaluation before a bulk order, with flexible MOQ for first-time distributors.
Wholesale Pricing & How to Buy
Factory-direct pricing is tiered by quantity, with volume tiers for distributors, contractors and project buyers; sample units are offered first. Tell us the heating type per room (electric mat / film / boiler), voltage and room count, and we will confirm the load configuration and return a same-day quotation. Contact our sales team for factory price, wholesale terms and free-sample arrangements.
FAQ
Can one thermostat control both electric heating and a boiler?
Yes — this model has a 16 A direct output for electric underfloor loads and a 3 A dry-contact output for boilers and wet manifolds, so mixed buildings can use one controller line across every room.
Is it WiFi or app controlled?
This programmable touch model operates on-device with a 7-day schedule. If you need remote app control, choose our WiFi models such as the Y603H or HY312 touch WiFi thermostat, which share the same footprint and wiring.
How does the 7-day schedule save energy?
It holds comfortable temperatures only during occupied hours and drops to a setback overnight or while rooms are empty — typically 1–2 °C lower — which trims heating energy without sacrificing comfort.
Does it work under wood or laminate floors?
Yes, with the 3 m floor sensor in floor-limited mode, which caps the floor temperature at the finish manufacturer’s safe maximum (usually 27–28 °C).
Which voltages does it support?
The 90–260 V~ 50/60 Hz supply covers 110–120 V North American circuits and 220–240 V European/Asian circuits — one SKU across markets.
